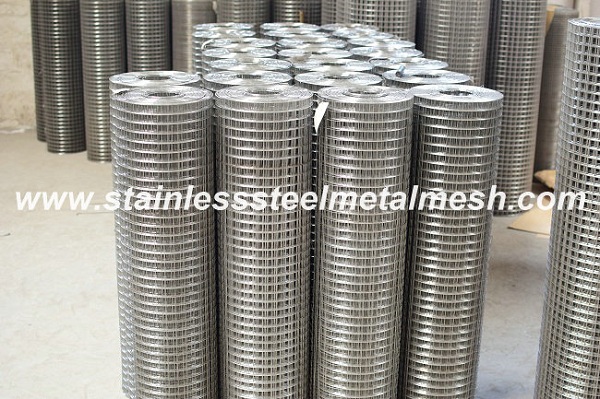

Stainless Steel Welded Wire Mesh
1.Stainless Steel welded wire mesh is made of high quality stainless steel wire and welded by advanced computer-controlled machines. It possesses features of excellent corrosion resistance, beautiful look, and longer work time.
2.Stainless Steel welded wire mesh Material: 302,304,304 L, 310,316,316 L can be made to the following specifications.
3.Stainless Steel welded wire mesh Application: With the above-mentioned features, Stainless Steel welded wire mesh is a good choice for fishery industry, food drying, marine use, rodent proofing, cages for animals, and decoration, etc.
Mesh Size | Wire Gauge Diameter | ||
In MM | In Inch | BWG No. | MM |
6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
9.5mm | 3/8Inch | BWG23-19 | 0.64mm - 1.07mm |
12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm |
19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm |
25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm - 1.65mm |
25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm |
38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm |
25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm |
50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77mm |
