5 Layer Sintered Wire Mesh

Views:1     Author:Site Editor     Publish Time: 2017-05-18      Origin:Site

5 Layer Sintered Wire Mesh is a standard combination of 5-layer sintered wire mesh which has the widest application. Five different layers of stainless steel wire mesh are combined, and then sintered together through vacuum sintering, compressing, and rolling, forming a porous product.

Technical Data As Below:

Model

Nominal Filter Rating
( u)

Structure

Thickness
(mm)

Air

Permeability

(L/min/cm2)

Bubble Pressure (mm H2O)

Weight
(kg/m2)

Porosity
(%)

XJ5-1

1

100+400X2800+100+12X64+64X12

1.7

1.81

360-600





5-layer sintered wire mesh(8.4)



6-layer sintered wire mesh
(14.4)













37%

XJ5-2

2

100+325X2300+100+12X64+64X12

1.7

2.35

300-590

XJ5-5

5

100+200X1400+100+12X64+64X12

1.7

2.42

260-550

XJ5-10

10

100+165X1400+100+12X64+64X12

1.7

3.00

220-500

XJ5-15

15

100+165X1200+100+12X64+64X12

1.7

3.41

200-480

Xj5-20

20

100+165X800+100+12X64+64X12

1.7

4.50

170-450

XJ5-25

25

100+165X600+100+12X64+64X12

1.7

6.12

150-410

XJ5-30

30

100+450+100+12X64+64X12

1.7

6.7

120-390

XJ5-40

40

100+325+100+12X64+64X12

1.7

6.86

100-350

XJ5-50

50

100+250+100+12X64+64X12

1.7

8.41

90-300

XJ5-75

75

100+200+100+12X64+64X12

1.7

8.7

80-250

XJ5-100

100

100+150+100+12X64+64X12

1.7

9.1

70-190

Note:The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. Its thickness is 3.5mm.And it has the higher anti-pressure ability.

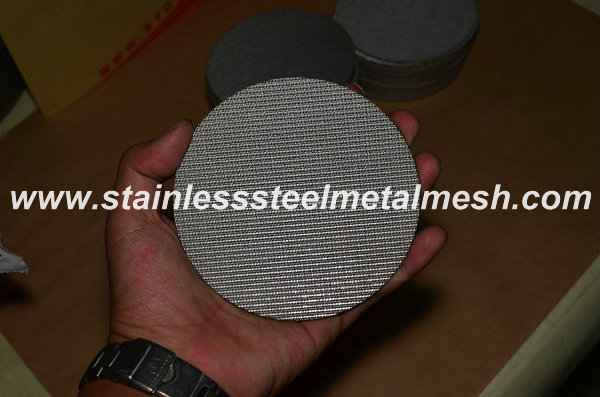

5 Layer Sintered Wire Mesh

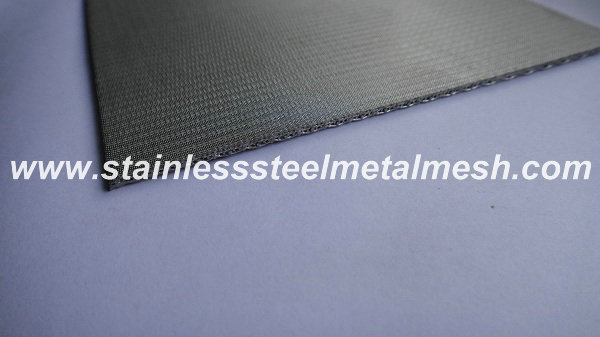

5 Layer Sintered Wire Mesh

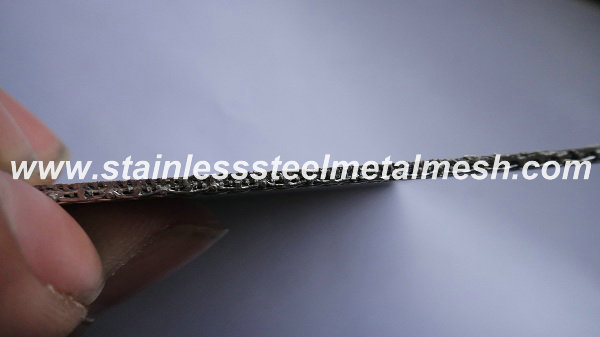

5 Layer Sintered Wire Mesh

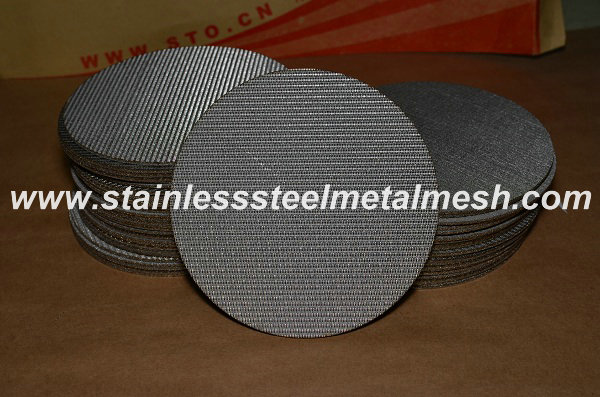

5 Layer Sintered Wire Mesh
