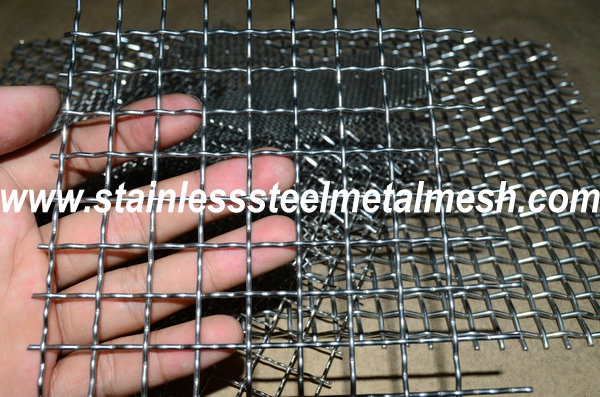

BWG12 (2.64mm Wire Dia.) Crimped Wire Mesh Aperture Size 30mm

Views: 199 Author: Site Editor Publish Time: 2017-04-24 Origin: Site

Wire Guage(BWG): 12

Aperture Size(mm):30

Wire Dia.(mm): 2.64

Weight(Kg/m2): 2.7

Crimped Wire Mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials.

Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.

Crimped Wire Mesh Material: Iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metal.

Crimped Wire Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

Crimped Wire Mesh Features: Structure firm and durable.

Crimped Wire Mesh Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.

Stainless Steel Pre-Crimped Wire Mesh Catalog
Wire Gauge (BWG)	Aperture Size ( mm)	Wire Dia. ( mm)	Weight(Kg/ m2)
8	30	4.06	6
8	25	4.06	7
8	20	4.06	8
8	15	4.06	10
8	12	4.06	13
8	10	4.06	15
10	30	3.25	4
10	25	3.25	4.7
10	20	3.25	5.8
10	15	3.25	7.4
10	10	3.25	10
12	30	2.64	2.7
12	22	2.64	3.2
12	20	2.64	3.9
12	15	2.64	5
12	10	2.64	7
14	20	2.03	2.38
14	15	2.03	3.1
14	12	2.03	3.7
14	10	2.03	4.35
14	8	2.03	5.22
14	6	2.03	6.52
14	4	2.03	8.68
14	3	2.03	10.4
16	15	1.63	2.03
16	10	1.63	2.9
16	8	1.63	3.5
16	6	1.63	4.4
16	4	1.63	5.99
18	12	1.22	1.43
18	10	1.22	1.68
18	8	1.22	2.05
18	6	1.22	2.62
18	4	1.22	3.62
18	3	1.22	4.48
20	12	0.91	0.82
20	10	0.91	0.96
20	8	0.91	1.18
20	5	0.91	1.78
20	4	0.91	2.15
20	3	0.91	2.69
