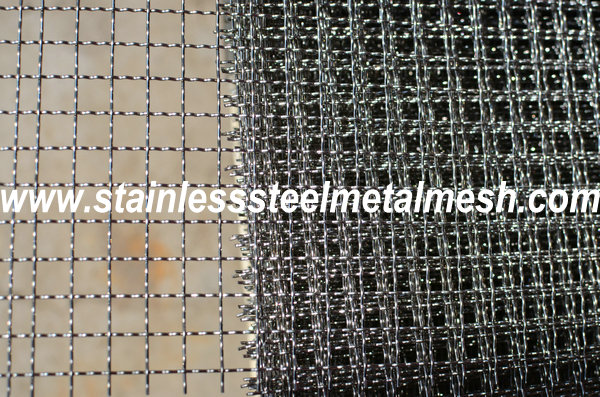

BWG20 (0.91mm Wire Dia.) Crimped Wire Mesh Aperture Size 10mm

Views: 216     Author: Site Editor     Publish Time: 2017-04-18      Origin: Site

Wire Guage(BWG): 20

Aperture Size(mm):10

Wire Dia.(mm):  0.91

Weight(Kg/m2): 0.96

Crimped Wire Mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials.

Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.

Crimped Wire Mesh Material: Iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metal.

Crimped Wire Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

Crimped Wire Mesh Features: Structure firm and durable.

Crimped Wire Mesh Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.

BWG20 (0.91mm Wire Dia.) Crimped Wire Mesh Aperture Size 10mm

Stainless Steel Pre-Crimped Wire Mesh Catalog
Wire Gauge (BWG) Aperture Size ( mm) Wire Dia. ( mm) Weight(Kg/ m2)
8 30 4.06 6
8 25 4.06 7
8 20 4.06 8
8 15 4.06 10
8 12 4.06 13
8 10 4.06 15
10 30 3.25 4
10 25 3.25 4.7
10 20 3.25 5.8
10 15 3.25 7.4
10 10 3.25 10
12 30 2.64 2.7
12 22 2.64 3.2
12 20 2.64 3.9
12 15 2.64 5
12 10 2.64 7
14 20 2.03 2.38
14 15 2.03 3.1
14 12 2.03 3.7
14 10 2.03 4.35
14 8 2.03 5.22
14 6 2.03 6.52
14 4 2.03 8.68
14 3 2.03 10.4
16 15 1.63 2.03
16 10 1.63 2.9
16 8 1.63 3.5
16 6 1.63 4.4
16 4 1.63 5.99
18 12 1.22 1.43
18 10 1.22 1.68
18 8 1.22 2.05
18 6 1.22 2.62
18 4 1.22 3.62
18 3 1.22 4.48
20 12 0.91 0.82
20 10 0.91 0.96
20 8 0.91 1.18
20 5 0.91 1.78
20 4 0.91 2.15
20 3 0.91 2.69
