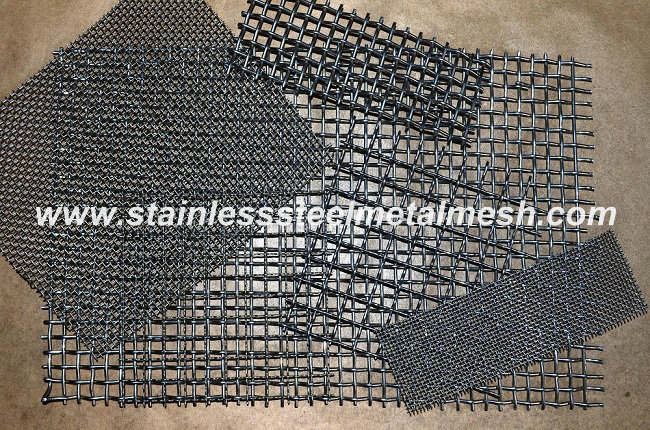

Crimped Wire Mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials.
Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.
Crimped Wire Mesh Material: Iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metal.
Crimped Wire Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.
Crimped Wire Mesh Features: Structure firm and durable.
Crimped Wire Mesh Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.
Stainless Steel Pre-Crimped Wire Mesh Catalog | |||
Wire Gauge (BWG) | Aperture Size ( mm) | Wire Dia. ( mm) | Weight(Kg/ m2) |
8 | 30 | 4.06 | 6 |
8 | 25 | 4.06 | 7 |
8 | 20 | 4.06 | 8 |
8 | 15 | 4.06 | 10 |
8 | 12 | 4.06 | 13 |
8 | 10 | 4.06 | 15 |
10 | 30 | 3.25 | 4 |
10 | 25 | 3.25 | 4.7 |
10 | 20 | 3.25 | 5.8 |
10 | 15 | 3.25 | 7.4 |
10 | 10 | 3.25 | 10 |
12 | 30 | 2.64 | 2.7 |
12 | 22 | 2.64 | 3.2 |
12 | 20 | 2.64 | 3.9 |
12 | 15 | 2.64 | 5 |
12 | 10 | 2.64 | 7 |
14 | 20 | 2.03 | 2.38 |
14 | 15 | 2.03 | 3.1 |
14 | 12 | 2.03 | 3.7 |
14 | 10 | 2.03 | 4.35 |
14 | 8 | 2.03 | 5.22 |
14 | 6 | 2.03 | 6.52 |
14 | 4 | 2.03 | 8.68 |
14 | 3 | 2.03 | 10.4 |
16 | 15 | 1.63 | 2.03 |
16 | 10 | 1.63 | 2.9 |
16 | 8 | 1.63 | 3.5 |
16 | 6 | 1.63 | 4.4 |
16 | 4 | 1.63 | 5.99 |
18 | 12 | 1.22 | 1.43 |
18 | 10 | 1.22 | 1.68 |
18 | 8 | 1.22 | 2.05 |
18 | 6 | 1.22 | 2.62 |
18 | 4 | 1.22 | 3.62 |
18 | 3 | 1.22 | 4.48 |
20 | 12 | 0.91 | 0.82 |
20 | 10 | 0.91 | 0.96 |
20 | 8 | 0.91 | 1.18 |
20 | 5 | 0.91 | 1.78 |
20 | 4 | 0.91 | 2.15 |
20 | 3 | 0.91 | 2.69 |
