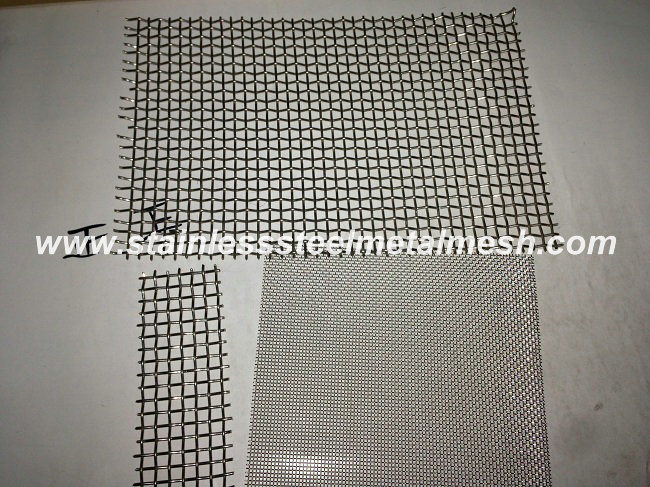

BWG8 (4mm Wire Dia.) Crimped Wire Mesh Aperture Size 30mm

Views: 189 Author: Site Editor Publish Time: 2017-04-25 Origin: Site

Crimped Wire Mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials.

Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.

Crimped Wire Mesh Material: Iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metal.

Crimped Wire Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

Crimped Wire Mesh Features: Structure firm and durable.

Crimped Wire Mesh Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.

Stainless Steel Pre-Crimped Wire Mesh Catalog
Wire Gauge (BWG)	Aperture Size ( mm)	Wire Dia. ( mm)	Weight(Kg/ m2)
8	30	4.06	6
8	25	4.06	7
8	20	4.06	8
8	15	4.06	10
8	12	4.06	13
8	10	4.06	15
10	30	3.25	4
10	25	3.25	4.7
10	20	3.25	5.8
10	15	3.25	7.4
10	10	3.25	10
12	30	2.64	2.7
12	22	2.64	3.2
12	20	2.64	3.9
12	15	2.64	5
12	10	2.64	7
14	20	2.03	2.38
14	15	2.03	3.1
14	12	2.03	3.7
14	10	2.03	4.35
14	8	2.03	5.22
14	6	2.03	6.52
14	4	2.03	8.68
14	3	2.03	10.4
16	15	1.63	2.03
16	10	1.63	2.9
16	8	1.63	3.5
16	6	1.63	4.4
16	4	1.63	5.99
18	12	1.22	1.43
18	10	1.22	1.68
18	8	1.22	2.05
18	6	1.22	2.62
18	4	1.22	3.62
18	3	1.22	4.48
20	12	0.91	0.82
20	10	0.91	0.96
20	8	0.91	1.18
20	5	0.91	1.78
20	4	0.91	2.15
20	3	0.91	2.69
