Flexible Stainless Steel Cable Mesh

Views: 119     Author: Site Editor     Publish Time: 2017-04-18      Origin: Site

Flexible stainless steel rope mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc. and two main strand structures:7*7 and 7*19. Our mesh products are supplied in two main series according to different weave-types: Inter-woven and Ferrule Type. The ferrule type series are sub-divided into aluminum alloy mesh and stainless steel mesh by the material of the ferrule.
Flexible Stainless Steel Cable Mesh

Flexible Stainless Steel Cable Mesh

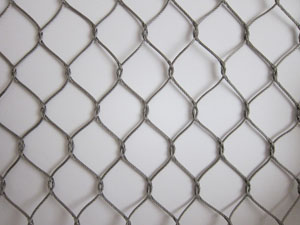

Inter-woven Type

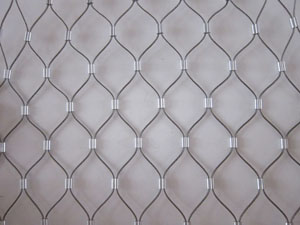

Flexible Stainless Steel Cable MeshFerrule Type(Aluminium ferrule)

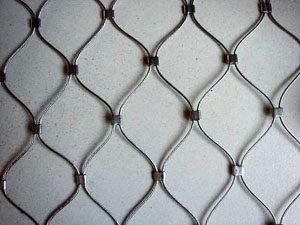

Flexible Stainless Steel Cable MeshFerrule Type(Stainless Steel Ferrule)

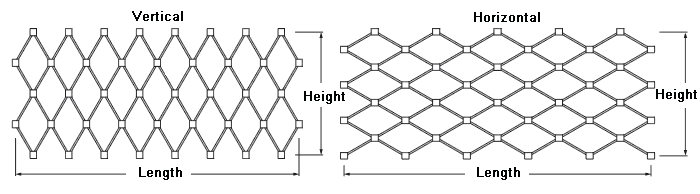

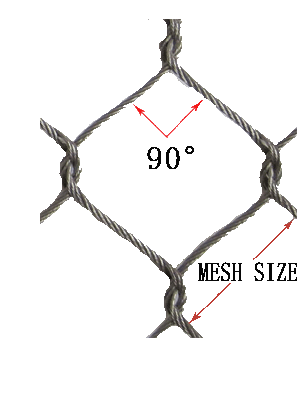

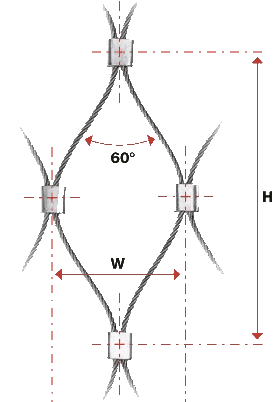

Our normal mesh specification is : cable dia.1mm-4mm and mesh size:20mm-160mm. Apart from the normal specifications, we can customize other specifications of mesh in different cable diameters and mesh sizes.

Flexible Stainless Steel Cable Mesh

Ferrule Type

Flexible Stainless Steel Cable Mesh

Inter-woven Type


Flexible Stainless Steel Cable Mesh

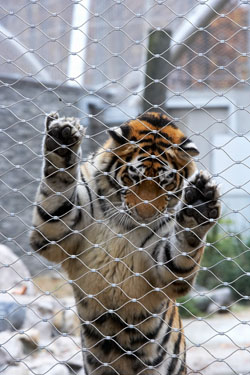

Flexible stainless steel cable mesh, inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
Flexible Stainless Steel Cable MeshFlexible Stainless Steel Cable MeshFlexible Stainless Steel Cable Mesh

Flexible Stainless Steel Cable Mesh

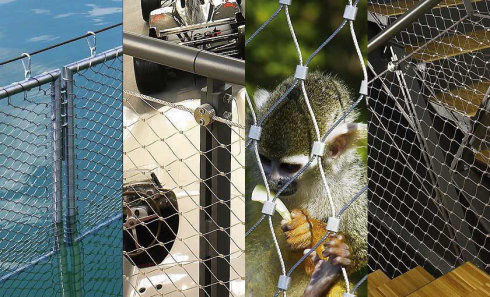

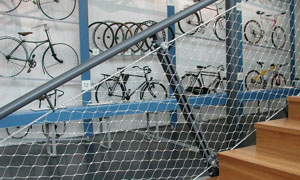

The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.
Flexible Stainless Steel Cable MeshFlexible Stainless Steel Cable MeshFlexible Stainless Steel Cable Mesh

Flexible Stainless Steel Cable MeshFlexible Stainless Steel Cable MeshFlexible Stainless Steel Cable Mesh
