Sintered Wire Mesh with Perforated Metal, Sintered Perforated Metal Mesh For Filter

Views:2     Author:Site Editor     Publish Time: 2017-05-18      Origin:Site

The sintered wire mesh with perforated metal is made by sintering the perforated metal with multiple layers of stainless steel wire mesh. Owing to the support of perforated plate, our product shows higher compressive and mechanical strength when compared with similar products, and it is used to make filters with different shapes including tube, disc and sheet. Based on these, it is applicable in many fields, such as pharmaceutical, food and beverage, water treatment, thin file, power station, etc. Further more, the thickness of perforated plate and the structure of wire mesh can be custom made.

Model

Filter Rating(u)

Structure

Thickness(mm)

Weight(kg/m2)

Porosity(%)

P4-2.0T

2-200

30+Filter layer+30+Φ4x5Px1.0T

2.0

6.7

57

P4-2.5T

2-200

30+Filter layer+30+Φ5x7Px1.5T

2.5

9.8

50

P5-3.0T

2-200

60+Filter layer+60++20+Φ6x8Px2.0T

3.0

11.8

50

P5-3.5T

2-200

20+Filter layer+20+10+Φ8x10Px2.0T

3.5

12.6

54

P5-4.0T

2-200

20+Filter layer+20+10+Φ8x10Px2.5T

4.0

14.2

55

P5-4.3T

5-200

20+Filter layer+20+10+Φ10x13Px3.0T

4.3

16.9

50

P5-5.3T

5-200

20+Filter layer+20+10+Φ10x13Px4.0T

5.3

20.6

51


Note:
The filter layer is adjustable as long as the filtration rating is within the specified range.
Other special structures are available on customer’s request.
The porosity is calculated when the filtration rating is 20 microns.
Materials:
The standard materials for this sintered square woven mesh contain SUS304(AISI304), SUS316(AISI316) as well as SUS316L(AISI316L), and Hastelloy, Monel, Inconel and other special alloys are also available on request.



Size:
The standard size is 500x1000mm, 600x1200mm, or 1200x1200mm. In addition, other custom made size within this range is acceptable.

As an experienced sintered square woven mesh manufacturer and supplier in China, we provide a comprehensive range of products, including sintered wire mesh with perforated metal mesh, sintered filter basket, sintered filter cartridge, sintered filter plate, and more.

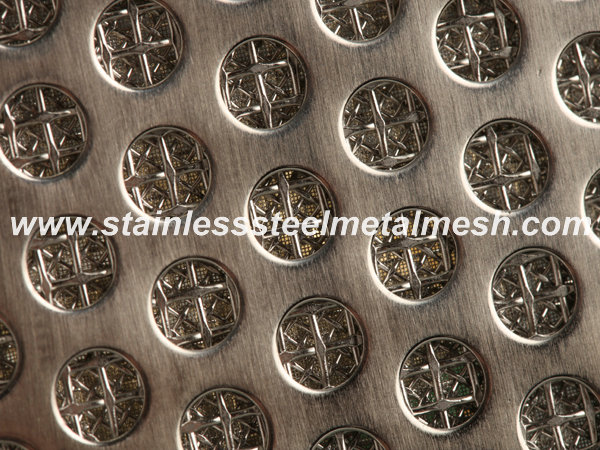

Sintered Wire Mesh with Perforated Metal
