Stainless Steel Dutch Filter Mesh

Quantity:
  • XINJIA
  • Hebei Anping
  • ISO9001
  • Xingang, Tianjin
  • 200 Set/Sets
  • 3000 Set/Sets per Month
  • L/C,T/T

Stainless steel dutch wire mesh is also known as stainless steel dutch woven wire cloth and stainless steel filter cloth. It is usually made of mild steel wire and stainless steel wire.Stainless steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units ,due to its stable and fine filtration capability.

Property:
Stainless steel dutch woven wire cloth offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. It also has fine filtration and highly durable construction.

Materials:
The main materials of stainless steel dutch woven wire cloth are 302、304、304L、316、316L stainless steel wire,copper wire, nickel wire,low carbon steel wire and polyester wire.
The apparent difference of reverse dutch weaving compared with standard dutch weave lies in the thicker warp wires and less weft wires. Reverse dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse Dutch weaving patterns.

Applications:
Due to its stable and fine filtration capability, stainless steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication and scientific research units, for example, filtering and screening in airspace, oil and chemicals, such as filter candles, vacuum filters and spring filters.

Meantime it's also widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.

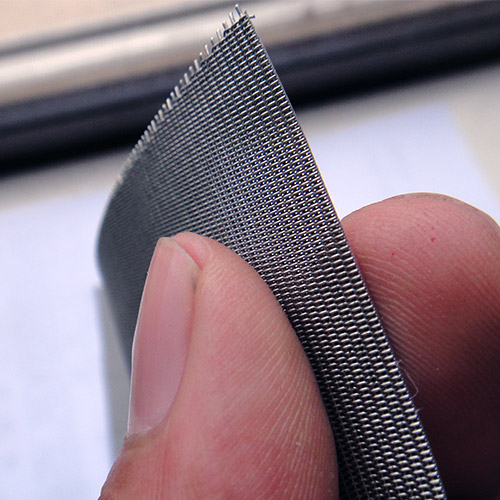

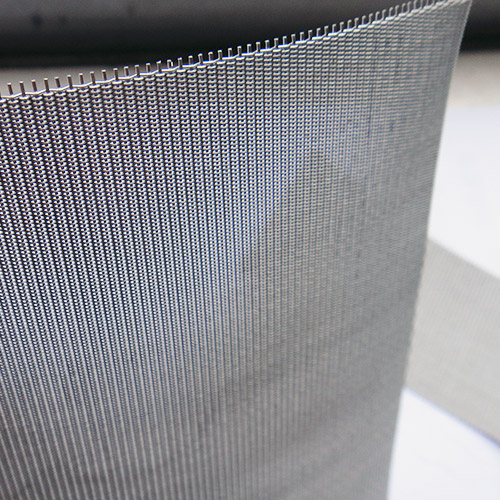

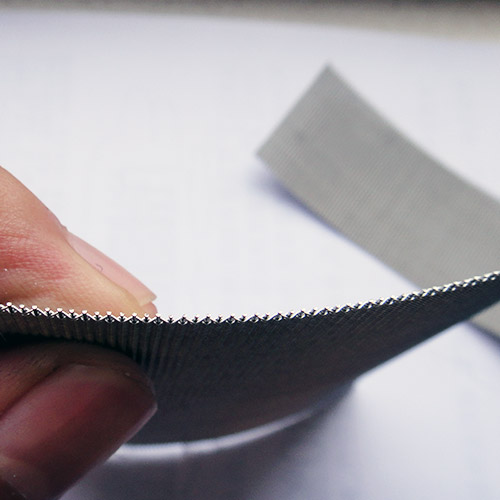

Stainless-Steel-Dutch-Filter-Mesh Stainless-Steel-Dutch-Filter-Mesh

The Specification Reference List of Stainless Steel Dutch Mesh

Mesh

Wire Dia. (MM)

Material(AISI)

12meshX64mesh

0.58/0.40

304 or 316

24meshX110mesh

0.36/0.25

304 or 316

14meshX88mesh

0.50/0.33

304 or 316

30meshX150mesh

0.18/0.14

304 or 316

40meshX200mesh

0.14/0.11

304 or 316

50meshX250mesh

0.10/0.071

304 or 316

80meshX700mesh

0.06/0.05

304 or 316

165meshX800mesh

0.071/0.040

304 or 316

165meshX1400mesh

0.05/0.032

304 or 316

200meshX1800mesh

0.05/0.03

304 or 316

325meshX2300mesh

0.030/0.025

316L

400meshX2800mesh

0.030/0.02

316L


Tages:Stainless Steel Dutch Mesh, stainless steel filter dutch mesh, stainless steel woven mesh,stainless steel mesh
