Stainless Steel Perforated Metal Mesh

Quantity:
  • XINJIA
  • Hebei Anping
  • ISO9001
  • Xingang, Tianjin
  • 200 Set/Sets
  • 3000 Set/Sets per Month
  • L/C,T/T

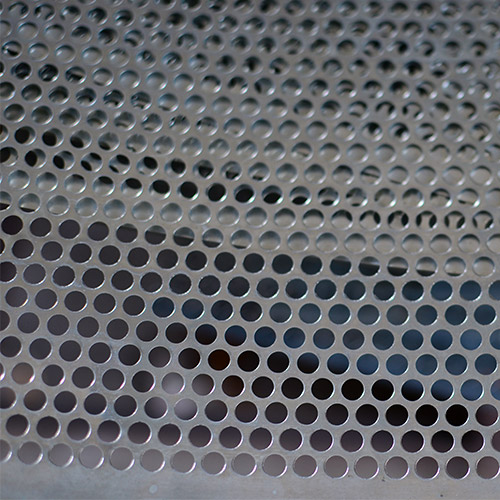

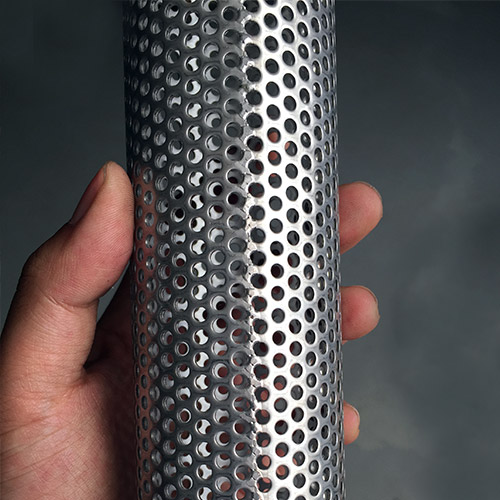

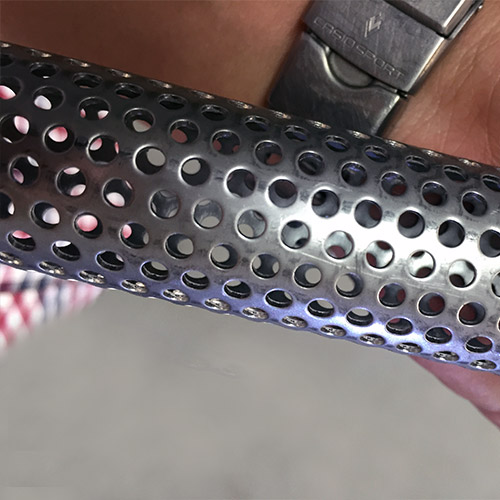

Stainless Steel Perforated Mesh is either T304 stainless steel sheet or T316 stainless steel sheet that has been punched with a series of holes to give you a nominated pattern. The pattern can vary depending on the hole size, distance between holes and the thickness of the material。

Materials: stainless steel plate,aluminum plate, AL-Mg alloy plate, low carbon steel plate

Features: lightweight, attractive, economical, easily customized, suitable for decorative applications.

Application: Perforated metal mesh can be used to benefit in many situations, e. G noise and weight reduction, air control, filtration, as a decorative finish or simply for anti-skid flooring. The varied qualities offered by perforated sheets make them ideal for sorting, facades, ceilings, lamps, shelves, shielding, stairs and many other applications, far too many to mention!

stainless-steel-perforated-metal-mesh stainless-steel-perforated-metal-mesh




DESCRIPTION HOLE SIZE PITCH OPEN AREA THICKNESS

(mm) (mm)
0.4mm 0.5mm 0.8mm 1.0mm 1.2mm 1.5mm
R0.8 T2 0.80 2.00 15% ** ** **


R1 T2 1.00 2.00 23% ** ** ** **

R1.2 T2.25 1.20 2.25 26%
** ** **

R1.2 T2.5 1.20 2.50 21%
** ** **

R1.5 T2.75 1.50 2.75 27%
** ** ** **
R1.5 T3 1.50 3.00 23%
** ** ** **
R1.8 T3.5 1.80 3.50 24%
** ** ** ** **
R2 T3 2.00 3.00 40%
** ** **

R2 T3.5 2.00 3.50 30%
** ** ** **
R2 T4 2.00 4.00 23%
** ** ** ** **
R2.5 T3.5 2.50 3.50 46%
** ** ** ** **
R2.5 T4 2.50 4.00 35%
** ** ** ** **
R2.5 T4.5 2.50 4.50 28%
** ** ** ** **
R2.5 T5 2.50 5.00 23%
** ** ** ** **
R3 T5 3.00 5.00 33%
** ** ** ** **
R3 T6 3.00 6.00 23%
** ** ** ** **
R3.5 T5 3.50 5.00 44%
** ** ** ** **
R4 T5 4.00 5.00 58%
** ** **

R4 T6 4.00 6.00 40%
** ** ** ** **
R4 T8 4.00 8.00 23%
** ** ** ** **
R5 T7 5.00 7.00 46%
** ** ** ** **
R5 T8 5.00 8.00 35%
** ** ** ** **
R5 T10 5.00 10.00 23%
** ** ** ** **
R5 T25 5.00 25.00 4%
** ** ** ** **
R6 T8.5 6.00 8.50 45%
** ** ** ** **
R6 T9 6.00 9.00 40%
** ** ** ** **
R6 T10 6.00 10.00 33%
** ** ** ** **
R7 T10 7.00 10.00 44%


** ** **
R8 T11 8.00 11.00 48%


** ** **
R8 T12 8.00 12.00 40%


** ** **
R8 T15 8.00 15.00 26%


** ** **
R10 T13 10.00 13.00 54%


** ** **
R10 T14 10.00 14.00 46%


** ** **
R10 T15 10.00 15.00 40%


** ** **
R10 T18 10.00 18.00 28%


** ** **
R12 T16 12.00 16.00 51%


** ** **
R12 T17 12.00 17.00 45%


** ** **
R15 T20 15.00 20.00 51%


** ** **
R15 T21 15.00 21.00 46%


** ** **
R20 T25 20.00 25.00 58%


** ** **
R20 T27 20.00 27.00 50%


** ** **
R20 T28 20.00 28.00 46%


** ** **
R20 T30 20.00 30.00 40%


** ** **
R25 T34 25.00 34.00 49%


** ** **
