pipeline mesh welding machine
high quality low price
mesh width:175-205mm
transversal :1.6-2.1mm
longitudinal :1.8-2.8mm

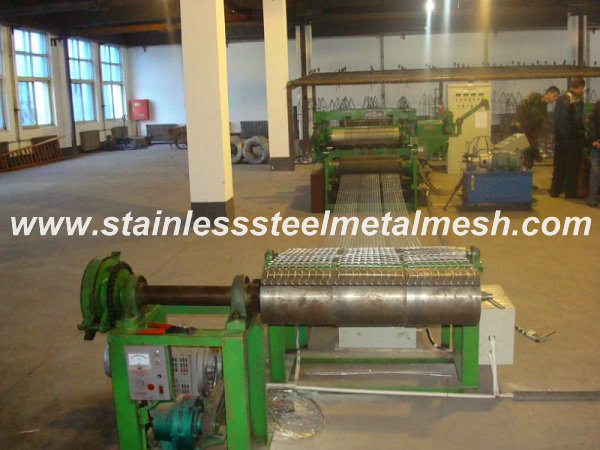

Pipeline mesh welding machine
Function features:
The pipeline mesh welding machine adopts PLC programmable controller . The whole machine is composed of pneumatic system , mechanical system , and electronical system.
It is with stable function , firm welding , precise dimension and uniform bending longitudinal wires .
Application:

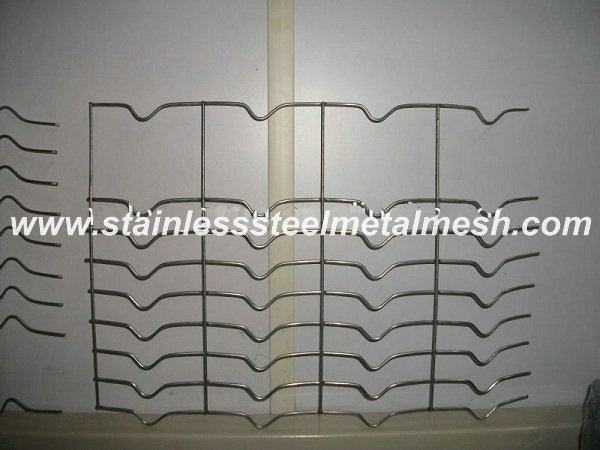

It is used as the coating of seabed oil seabed oil pipeline , gas pipeline together with the heavy duty reinforcing welded mesh.
Main parameters:
Longitudinal Wire dia(mm) | Transversal Wire dia (mm) | Mesh Width (mm) | Inside dia of mesh roll (mm) | Outside dia of mesh roll (mm) |
1.8 | 1.6 | 190±15 | 200±10 | 1050±50 |
2.1 | 1.8 | 190±15 | 200±10 | 1050±50 |
2.55 | 2.0 | 190±15 | 200±10 | 1050±50 |
2.85 | 2.1 | 190±15 | 200±10 | 1050±50 |
Wire spacing type | Size(mm) | Tolerance allowed(mm) | Protrusion wire Length(mm) |
Longitudinal wire spacing | 25.4,50.8 | ±2 | |
Transversal wire spacing | 67 | ±5 | ≤2.5 |
