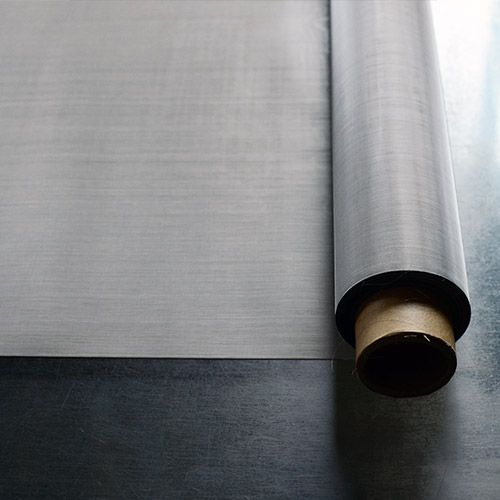

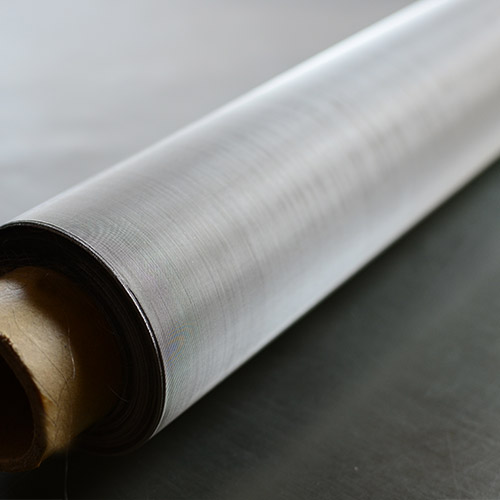

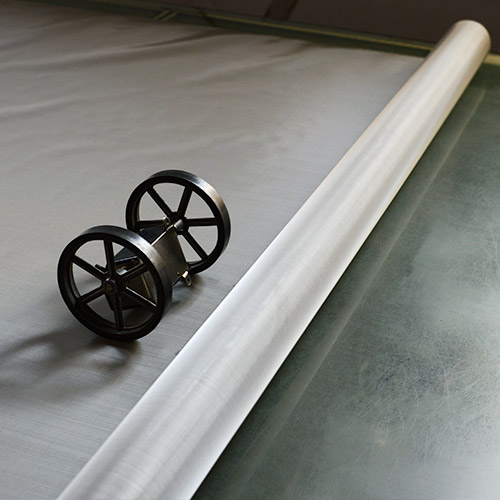

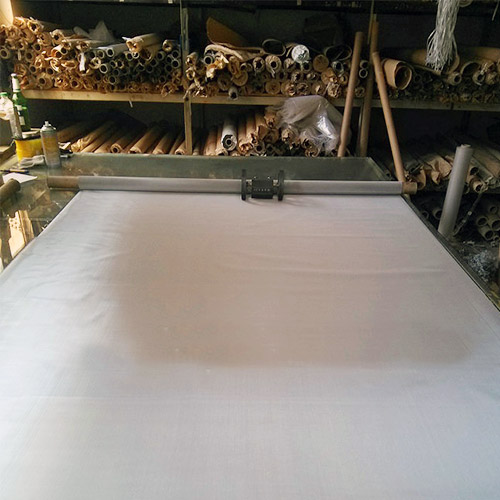

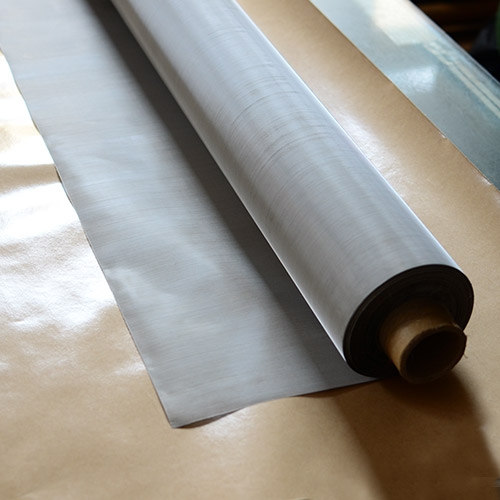

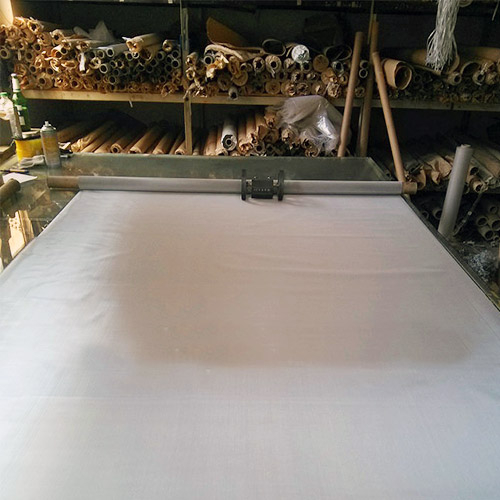

Stainless Steel Wire Mesh

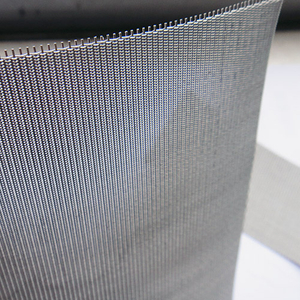

Stainless Steel Wire Mesh can be divided into Stainless Steel Wire Mesh Square Opening and Stainless Steel Wire Mesh Dutch Weave according to weaving types, while Square Opening Stainless Steel Wire Mesh can be further divided into square wire mesh plain weave and square wire mesh twill weave.

Stainless Steel Wire Mesh Square Opening usually refers to woven stainless steel wire mesh, in Plain Weave or Twill Weave patterns.



Standard mesh counts per inch for stainless steel wire mesh with square opening:
2mesh/3mesh/4mesh/7mesh/10mesh/12mesh/16mesh/18mesh/20mesh/24mesh/30mesh/35mesh/40mesh
/50mesh/60mesh/70mesh/80mesh/90mesh/100mesh/120mesh/150mesh/180mesh/200mesh/250mesh
/300mesh/325mesh/350mesh/400mesh/450mesh/500mesh

Technical Note:
Standard width of stainless steel wire mesh: 1m(40'') or 1.22m(48"), 1.524m(60''); stainless steel wire mesh with extra roll width of 4m also available.
Standard roll length of stainless steel wire mesh: 30.5m(100').

Wire Materials:
Stainless Steel Wire: Aisi 304, 304L,316, 316L, 310,314, 410, 430.
Special Steel: Cromax, Incoloy, Alloy Ni-Cr, Inconel, Nickel, Monel, Titanium.
Woven wire mesh is also available with carbon steel, low carbon steel,galvanized steel, brass, bronze, copper, aluminum alloy, etc.

Stainless Steel Wire Mesh Product Features:
Stainless steel wire mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high opensurface area and good fireproof property

Plain Weave Description:
Plain Weave is a kind of commonly used weaving method. The warp wire that establish the length of the wire mesh and the weft wire, parallel to the width,cross one another, alternating one on the top and one under, forming a 90° angle between each other.
Solid woven wire mesh may have a square or rectangular opening.
Plain Woven Wire Mesh Clothes are basic components in the production offilters, colanders for aliments, chemicals products, shielding, mosquito nets,etc.
