XINJIA
Hebei Anping
ISO9001
Xingang, Tianjin
200 Set/Sets
3000 Set/Sets per Month
L/C,T/T

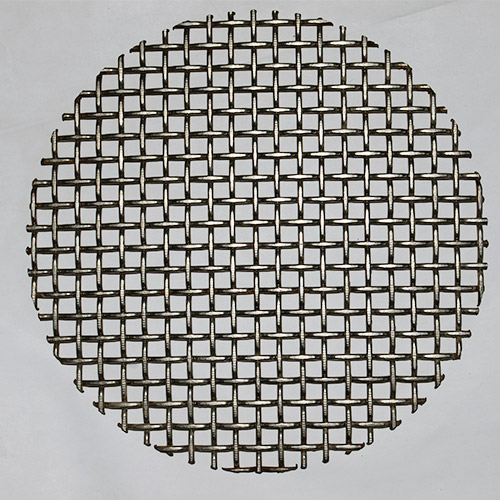

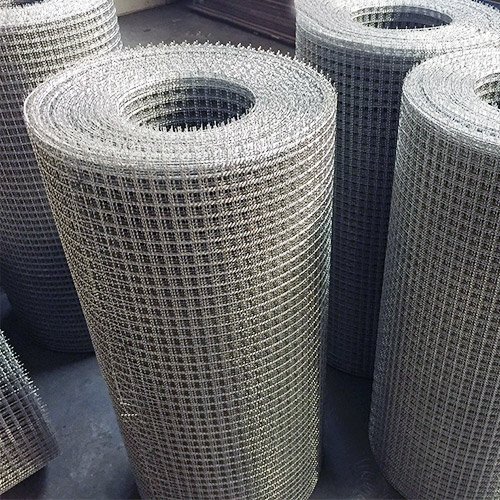

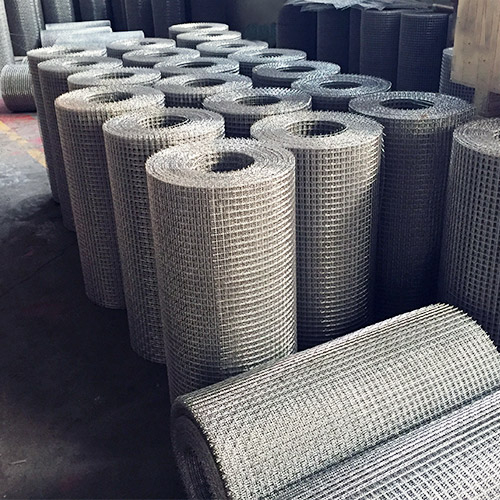

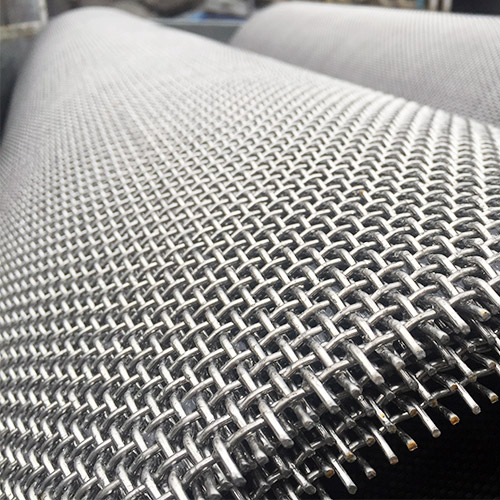

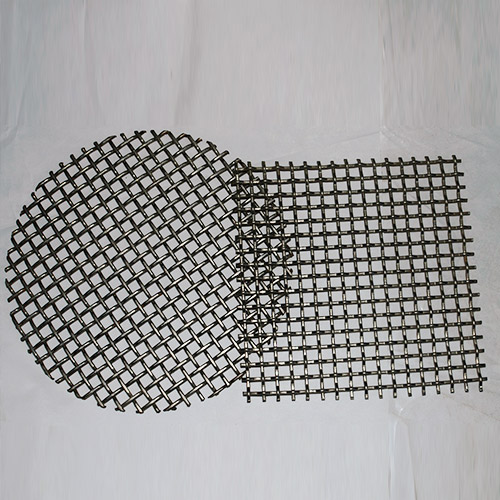

According to the weaving pattern the Stainless Steel Crimped Wire Mesh can be divided into:
Double crimp mesh, intermediate crimp mesh, lock crimp mesh, flat top crimp mesh, lock slot crimp mesh.
Processing method: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, and rectangular opening weave.
Characteristics: Crimped wire mesh has stable structure and good strength.
Material: stainless steel crimped wire mesh is one of the main stainless steel products, it is made of carbon iron wire, galvanized steel or stainless steel.
Application: stainless steel crimped wire mesh could be used in many fields, such as in mine, coal factory, construction and other industries. Some of the stainless steel crimped wire mesh could also be used for roasting flour food and meat.
Wire Gauge(SWG) | Wire Diameter(mm) | Mesh/Inch | Aperture(mm) | Weight(kg) |
6 | 4.8 | 1 | 20.6 | 11.5 |
8 | 4.05 | 2 | 9 | 16.5 |
10 | 3.2 | 2 | 10 | 10.5 |
12 | 2.6 | 3 | 5.9 | 10.5 |
14 | 2 | 3 | 6.5 | 6 |
16 | 1.6 | 4 | 5 | 5.5 |
17 | 1.4 | 5 | 5.1 | 5 |
18 | 1.2 | 5 | 4 | 3.6 |
19 | 1 | 6 | 3.2 | 3 |
21 | 0.8 | 7 | 2.8 | 2.3 |
22 | 0.7 | 8 | 2.5 | 2 |
Tages: Stainless Steel Crimped Wire Mesh,stainless steel woven mesh,stainless steel mesh, Stainless Steel Crimped Mesh In Panel, Stainless Steel Crimped Mesh In Roll
