Stainless Steel Knitted Wire Mesh

Quantity:
  • XINJIA
  • Hebei Anping
  • ISO9001
  • Xingang, Tianjin
  • 200 Set/Sets
  • 3000 Set/Sets per Month
  • L/C,T/T

Stainless Steel Knitted Wire Mesh For Filter

1.Wire diameter range:0.10mm-0.55mm (common wire through is:0.20mm - 0.25mm).
2.Hole size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same,width is different).
3.The common width of Knitted Wire Mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, etc.
4.The surface condition of the Knitted Wire Mesh: the flat-type mesh surface and pressed into a corrugated bellows-type network surface (the width of the corrugations and the depth of the different specifications)
5.The main material of Knitted Wire Mesh: Aluminum wire,stainless steel wire, galvanized wire,fibre wire,plastic wire,PP,PC,PE,PVC,etc.
6.Main purposes: mainly used for processing demister for separation of the gas inside the droplets. Can also be extrusion molding, for manufacturing a filtration device.

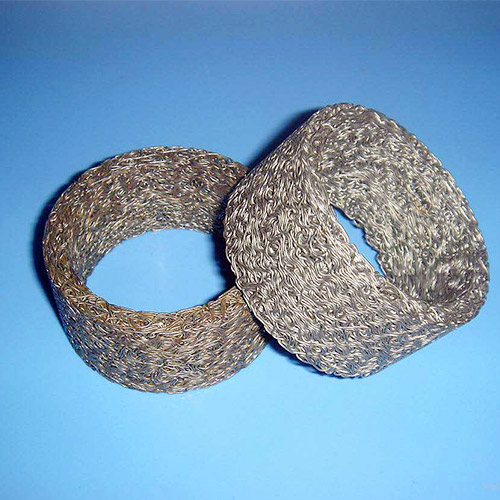

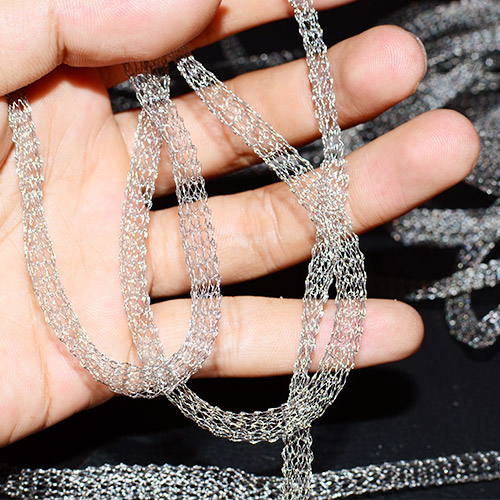

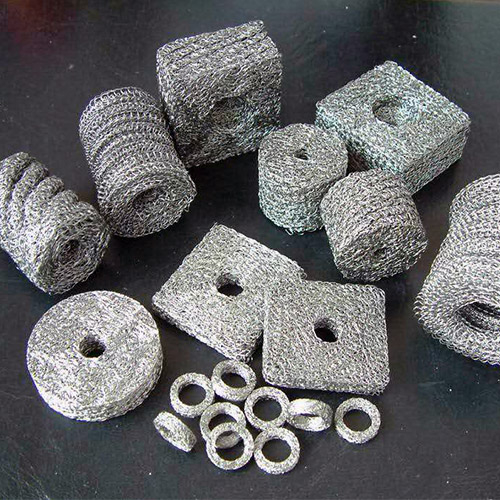

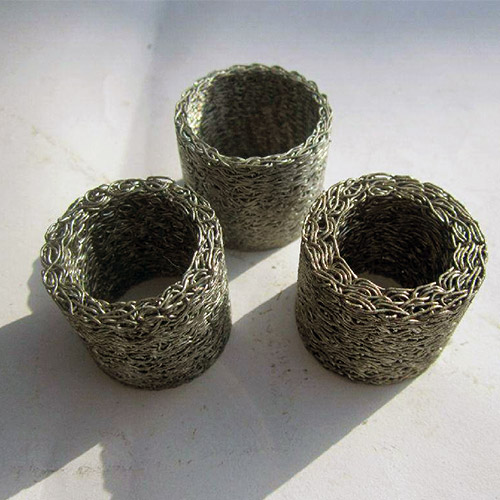

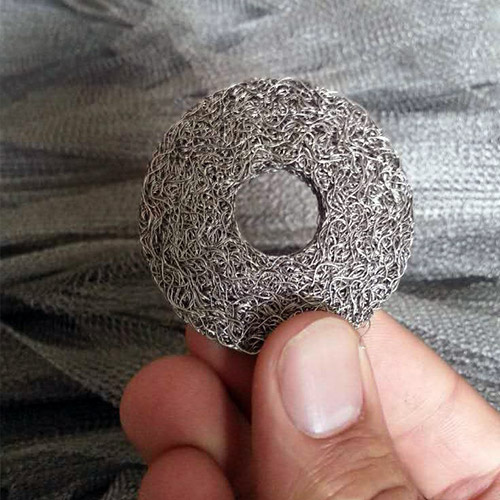

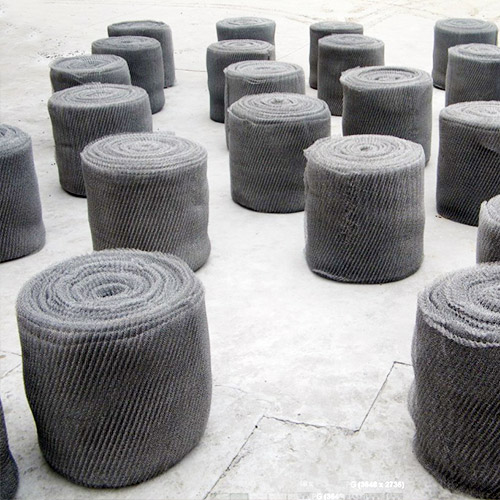

Stainless-steel-Knitted-Wire-Mesh Stainless-steel-Knitted-Wire-Mesh


Type

Holes No. & mesh width

Wire dia. (MM)

Material

Weight (kg/sqm)


Standard

40-100

0.1X0.4

1Cr18Ni9

1/0.5

60-180

0.1X0.4

1Cr18Ni9

1/0.5

140-400

0.1X0.4

1Cr18Ni9

1/0.5

40-100

0.27

Lead wire with Zinc-coating

1/0.7

40-100

0.1X0.4

Copper wire

1/0.7


High efficiency

70-100

0.1X0.3

Stainless steel wire

1/0.6

80-100

0.1X0.3

Stainless steel wire

1/0.6

90-150

0.1X0.3

Stainless steel wire

1/0.6

200-400

0.1X0.3

Stainless steel wire

1/0.6


Great penetration

20-160

0.1X0.4

Stainless steel wire

1/0.4

30-150

0.1X0.4

Stainless steel wire

1/0.4

70-400

0.1X0.4

Stainless steel wire

1/0.4




Tages: stainless steel knitted wire meshstainless steel woven meshstainless steel metal mesh
