| Quantity: | |
|---|---|
XINJIA
Hebei Anping
ISO9001
Xingang, Tianjin
200 Set/Sets
3000 Set/Sets per Month
L/C,T/T

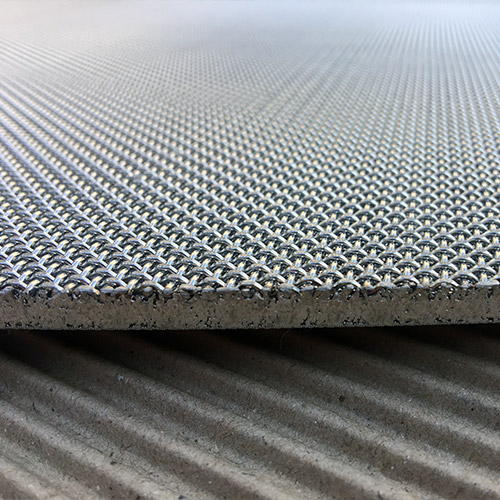

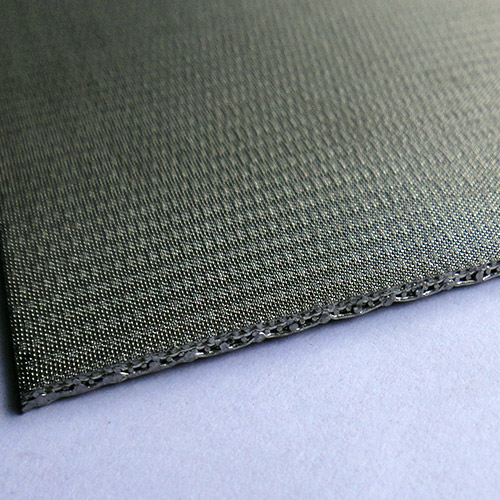

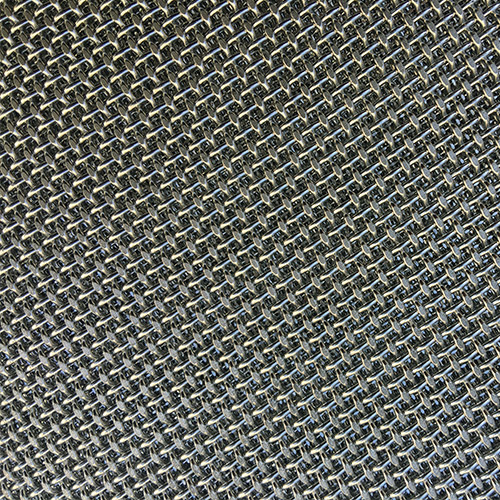

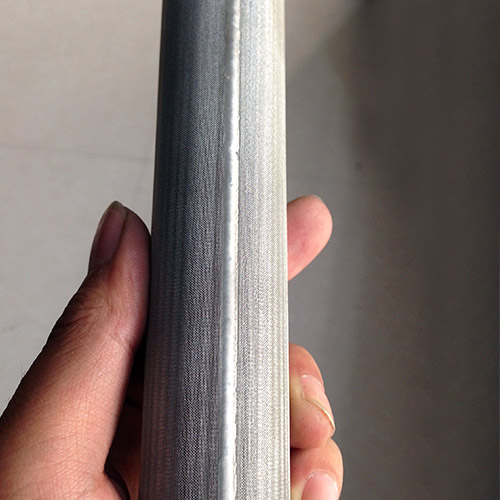

Stainless Steel Sintered Wire Mesh is a filtering cloth made by pressing multi-layer woven wire cloth, then sintered together in vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.
Material:
Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L for Stainless Steel Sinter Wire Mesh.
Major Characteristics:
Excellent strength, no inner support is required for making filter elements, no material, easily repeated cleaning, long lifespan, good anti-corrosion.
Dimension:
The standard size: 500mmx1000mm; 600mmx1200mm; 1000mmx1000mm; 1200mmx1200mm, and other size in between are also available.
Application:
Stainless Steel Sintered Wire Mesh is widely used in filtration of high molecular polymer, long fiber, short fiber, meltdown in thin film production, also drugs, hydraulic oil, disposal of water, hot gas and so on.
Model | Nominal Filter Rating | Structure | Thickness | Air Permeability (L/min/cm2) | Bubble Pressure (mm H2O) | Weight | Porosity |
A5-1 | 1 | 100+400X2800+100+12X64+64X12 | 1.7 | 1.81 | 360-600 |
5-layer sintered wire mesh(8.4)
6-layer sintered wire mesh |
37% |
A5-2 | 2 | 100+325X2300+100+12X64+64X12 | 1.7 | 2.35 | 300-590 | ||
A5-5 | 5 | 100+200X1400+100+12X64+64X12 | 1.7 | 2.42 | 260-550 | ||
A5-10 | 10 | 100+165X1400+100+12X64+64X12 | 1.7 | 3.00 | 220-500 | ||
A5-15 | 15 | 100+165X1200+100+12X64+64X12 | 1.7 | 3.41 | 200-480 | ||
A5-20 | 20 | 100+165X800+100+12X64+64X12 | 1.7 | 4.50 | 170-450 | ||
A5-25 | 25 | 100+165X600+100+12X64+64X12 | 1.7 | 6.12 | 150-410 | ||
A5-30 | 30 | 100+450+100+12X64+64X12 | 1.7 | 6.7 | 120-390 | ||
A5-40 | 40 | 100+325+100+12X64+64X12 | 1.7 | 6.86 | 100-350 | ||
A5-50 | 50 | 100+250+100+12X64+64X12 | 1.7 | 8.41 | 90-300 | ||
A5-75 | 75 | 100+200+100+12X64+64X12 | 1.7 | 8.7 | 80-250 | ||
A5-100 | 100 | 100+150+100+12X64+64X12 | 1.7 | 9.1 | 70-190 |
Tages: Stainless Steel Sintered Wire Mesh,stainless steel filter mesh,stainless steel mesh
