XINJIA
Hebei Anping
ISO9001
Xingang, Tianjin
200 Set/Sets
3000 Set/Sets per Month
L/C,T/T

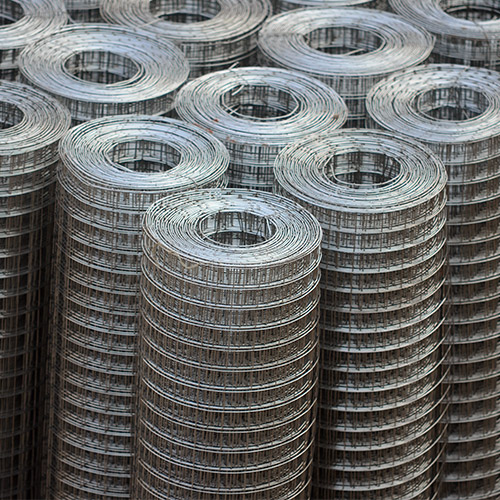

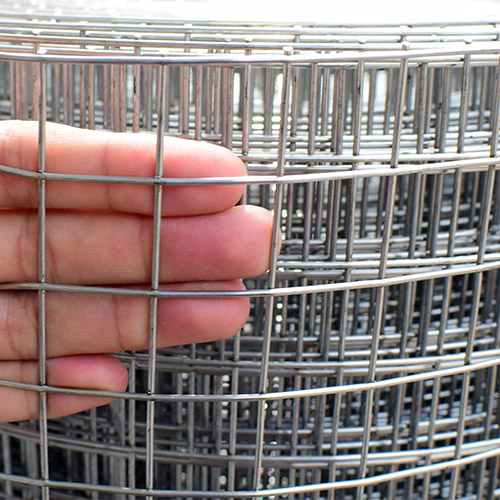

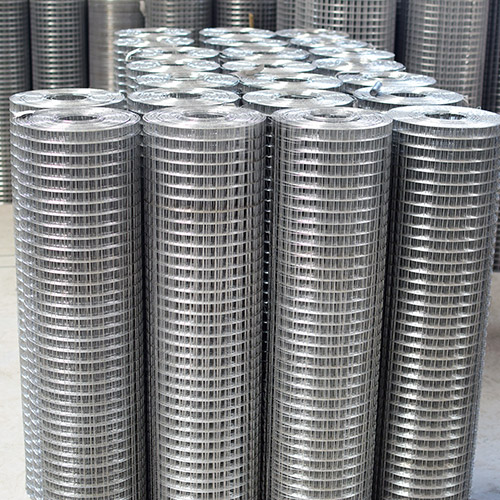

Stainless Steel Welded Wire Mesh is made of high-quality stainless steel wire through automatic process and sophisticated welding technique. Welded Wire Mesh is laid uniformly horizontally and vertically, welded at every intersection. Welded Wire Mesh offers level and flat surface.
Features:
Stainless Steel Welded Wire Mesh is strong and long lasting. By its very nature stainless steel wire needs no additional finish, such as galvanizing or PVC, to protect it. The wire itself is extremely resistant to rust, corrosion and harsh chemicals. If you need a welded mesh or fence in an area with prolonged exposure to corrosives, Stainless Steel Welded Wire Mesh will meet the demands.
Processing of welded wire mesh can be different for various features:
* Hot dipped galvanizing after weaving: Welded wire mesh woven with hot dipped galvanized iron wire.
* Electro galvanizing after weaving: Welded wire mesh woven with electro galvanized iron wire.
* PVC coating after welding: Welded wire mesh can be further coated with PVC powder.
* Stainless steel welded wire mesh
Application: It can be mainly used in industry, agriculture, building, transportation, mine, field, lawn, cultivation, profession's guard, decorate, machine protection, fence and so on.
GAUGE | MESH | W X L | N.W/ROLL (KGS) | LOAD CAPABILITY (ROLLS/20 ' ) |
BWG14 | 1" X 1" | 3' X 100' | 56 | 240 |
2" X 1" | 3' X 100' | 41 | 245 | |
BWG15 | 1" X 1" | 3' X 100' | 42 | 275 |
2" X 1" | 3' X 100' | 32 | 285 | |
BWG16 | 1" X 1" | 3' X 100' | 35 | 300 |
2" X 1" | 3' X 100' | 27 | 360 | |
3/4" X 3/4" | 3' X 100' | 47 | 300 | |
BWG17 | 1" X 1" | 3' X 100' | 28 | 360 |
1" X 1/2" | 3' X 100' | 41 | 330 | |
3/4" X 3/4" | 3' X 100' | 36 | 335 | |
BWG18 | 1" X 1" | 3' X 100' | 19 | 475 |
1/2" X 1/2" | 3' X 100' | 40 | 415 | |
1" X 1/2" | 3' X 100' | 29 | 415 | |
3/4" X 3/4" | 3' X 100' | 26 | 440 | |
BWG19 | 1" X 1" | 3' X 100' | 14 | 565 |
1/2" X 1/2" | 3' X 100' | 28 | 490 | |
1" X 1/2" | 3' X 100' | 20 | 525 | |
3/4" X 3/4" | 3' X 100' | 19 | 545 | |
BWG20 | 1" X 1" | 3' X 100' | 10 | 740 |
1/2" X 1/2" | 3' X 100' | 20 | 580 | |
3/4" X 3/4" | 3' X 100' | 13 | 630 | |
BWG21 | 1/2" X 1/2" | 3' X 100' | 16 | 700 |
BWG22 | 1/2" X 1/2" | 3' X 100' | 13 | 800 |
BWG23 | 1/4" X 1/4" | 3' X 100' | 20 | 800 |
|

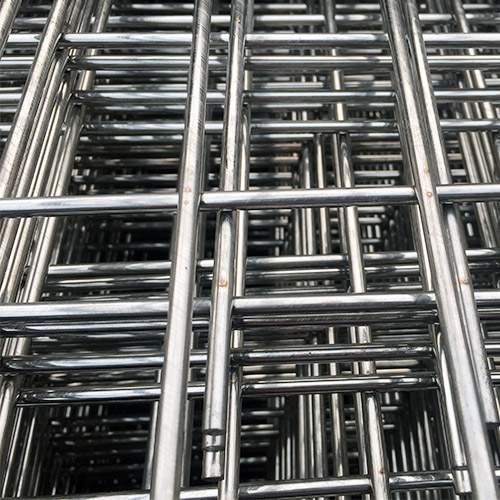

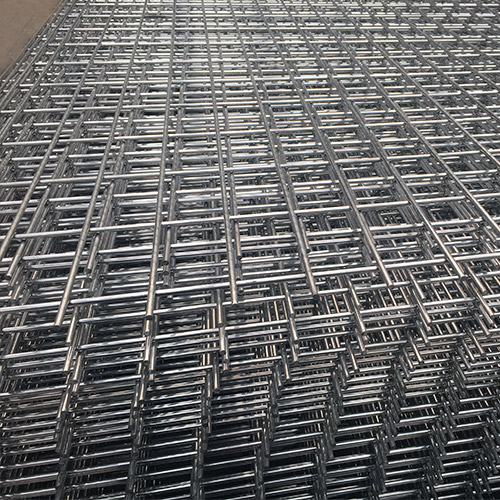

Specification List of Welded Wire Mesh Panel | ||
Opening | Wire Diameter(BWG) | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. |
Tages: Stainless Steel Welded Wire Mesh,Stainless Steel Welded Mesh In Roll, Stainless Steel Welded Mesh In Panel, Stainless steel metal mesh,stainless steel mesh
