Sintered square woven mesh

Views:0     Author:Site Editor     Publish Time: 2017-05-18      Origin:Site

The sintered square woven mesh is mainly used to process various kinds of gas and liquid. It is produced by sintering multiple layers of plain weave square woven mesh together, and it has some excellent features dues to the large open area percentage of square mesh, such as high air permeability, low resistance, large flow rate, etc. In addition, every layer is alternative, so our product can be custom made.

Technical Parameters

Model

Structure

Filter rating(u)

Thickness(mm)

Weight(kg/ m2)

Porosity(%)

XJ2-0.5T

Filter layer+60

2-100

0.5

1.6

60

XJ3-0.7T

60+Filter layer+60

2-100

0.7

2.4

56

XJ3-1.0T

50+Filter layer+20

20-200

1.0

3.3

58

XJ3-2.0T

Filter layer+20+8.5

20-250

2.0

6.5

58

XJ4-1.0T

60+Filter layer+40+20

2-200

1.0

4.4

44

XJ4-1.7T

40+Filter layer+20+16

2-200

1.7

6.2

54

XJ5-1.9T

30+Filter layer+60+20+16

2-200

1.9

5.3

52

XJ5-2.5T

80+Filter layer+30+10+8.5

2-200

2.5

8.8

55

XJ7-2.0T

50+Filter layer+40+20+40+Filter layer+50

2-150

2.0

7.4

58

Note:

1. The filter layer is adjustable as long as the filtration rating is within the specified range.

2. Other specifical structures are available on customer’s request.

3. The porosity is calculated when the filtration rating is 20microns.

Materials:

The standard materials for this sintered square woven mesh contain SUS304(AISI304), SUS316(AISI316) as well as SUS316L(AISI316L), and Hastelloy, Monel, Inconel and other special alloys are also available on request.

Size:

The standard size is 500x1000mm, 600x1200mm, or 1200x1200mm. In addition, other custom made size within this range is acceptable.As an experienced sintered square woven mesh manufacturer and supplier in China, we provide a comprehensive range of products, including sintered wire mesh with perforated metal mesh, sintered filter basket, sintered filter cartridge, sintered filter plate, and more.

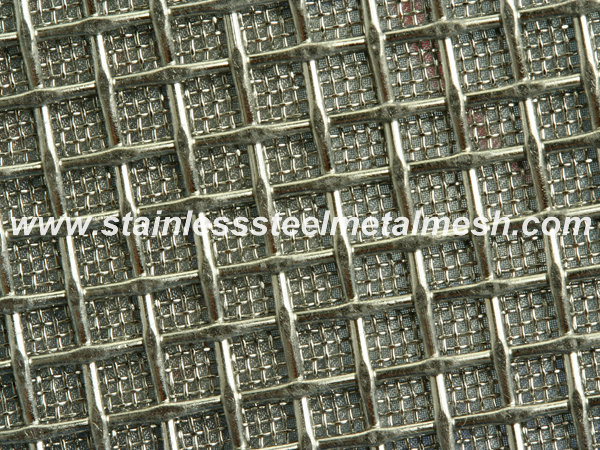

Sintered square woven mesh

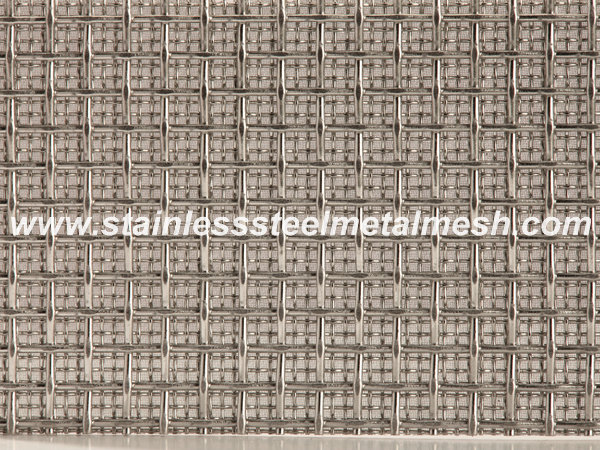

Sintered square woven mesh

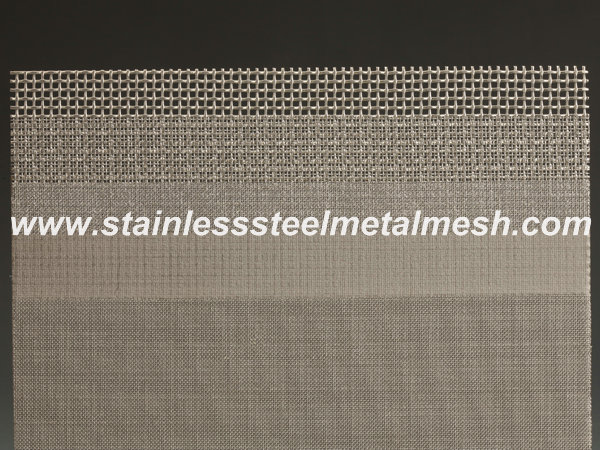

Sintered square woven mesh
